*Imagem Ilustrativa
Monoestágio FGN

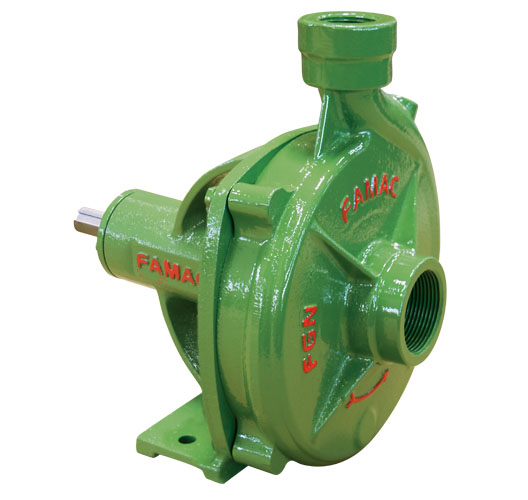

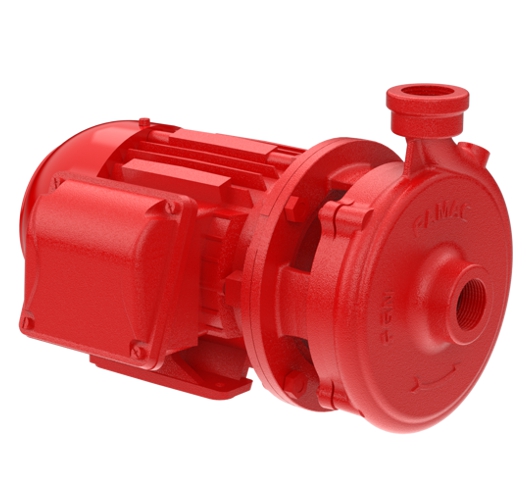

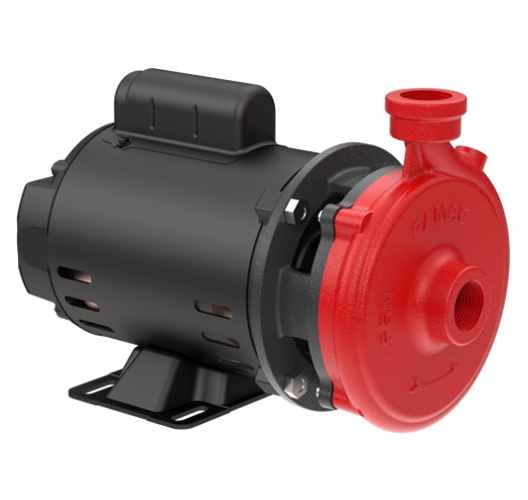

Tipo: Motobomba centrífuga monoestágio de eixo horizontal com saída central
Aplicações gerais:
-
Abastecimento residencial, predial, industrial, jardinagem, poço comum, transferência, lavação, hidroponia, nebulização, irrigação, circulação, refrigeração, aquecedor, pressurização, combate a incêndio.
Tabela Hidráulica
Manual
Fale com Técnico
Fiação
Esquema de Ligação
Tabela Hidráulica
Catálogo Técnico
Manual
Fale com Técnico
Fiação
Esquema de Ligação
Desenho Dimensional
Vista Explodida
BIM
Carregando...
Pesquise entre os itens
52 Curvas encontradas.
Clique sobre a lupa para filtrar os campos da tabela abaixo para procurar sobre um modelo especifico.
| Detalhe Detail |
Modelo
Model
|
CV
hp
|
Estágio
Stg
|
Diametro
Ø (mm)
|
Solid.
(mm)
|
Rotação
(rpm)
|
Bitola (pol)
Size (in)
|
Monofasico
Single Phase (V)
|
Trifásico
Three Phase (V)
|
Loja Seller | Partilhar Share |
|---|---|---|---|---|---|---|---|---|---|---|---|
CURVAS
|
FGN-0 0,33cv/1/122mm/3500rpm | 1/3 | 1 | 122 | 0 | 3500 | 1" x 1" | 110/127/220/254 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-0 0,50cv/1/130mm/3500rpm | 1/2 | 1 | 130 | 0 | 3500 | 1" x 1" | 110/127/220/254 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-8 0,75cv/1/85mm/3500rpm | 3/4 | 1 | 85 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 0,75cv/1/85mm/3500rpm | 3/4 | 1 | 85 | 0 | 3500 | 2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-7 0,75cv/1/90mm/3500rpm | 3/4 | 1 | 90 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-2 0,75cv/1/110mm/3500rpm | 3/4 | 1 | 110 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-1 0,75cv/1/135mm/3500rpm | 3/4 | 1 | 135 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-3 0,75cv/1/135mm/3500rpm | 3/4 | 1 | 135 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-8 1,0cv/1/90mm/3500rpm | 1,0 | 1 | 90 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 1,0cv/1/95mm/3500rpm | 1,0 | 1 | 95 | 0 | 3500 | 2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-7 1,0cv/1/95mm/3500rpm | 1,0 | 1 | 95 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 1,0cv/1/100mm/3500rpm | 1,0 | 1 | 100 | 0 | 3500 | 2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-4 1,0cv/1/117mm/3500rpm | 1,0 | 1 | 117 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-2 1,0cv/1/120mm/3500rpm | 1,0 | 1 | 120 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-4 1,0cv/1/122mm/3500rpm | 1,0 | 1 | 122 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-3 1,0cv/1/140mm/3500rpm | 1,0 | 1 | 140 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-1 1,0cv/1/145mm/3500rpm | 1,0 | 1 | 145 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-8 1,5cv/1/97mm/3500rpm | 1,5 | 1 | 97 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 1,5cv/1/105mm/3500rpm | 1,5 | 1 | 105 | 0 | 3500 | 2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-7 1,5cv/1/105mm/3500rpm | 1,5 | 1 | 105 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 1,5cv/1/110mm/3500rpm | 1,5 | 1 | 110 | 0 | 3500 | 2" x 1 1/2" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-4 1,5cv/1/127mm/3500rpm | 1,5 | 1 | 127 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-2 1,5cv/1/140mm/3500rpm | 1,5 | 1 | 140 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-3 1,5cv/1/150mm/3500rpm | 1,5 | 1 | 150 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-1 1,5cv/1/155mm/3500rpm | 1,5 | 1 | 155 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-3 1,5cv/1/155mm/3500rpm | 1,5 | 1 | 155 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-8 2,0cv/1/102mm/3500rpm | 2,0 | 1 | 102 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-7 2,0cv/1/112mm/3500rpm | 2,0 | 1 | 112 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 2,0cv/1/115mm/3500rpm | 2,0 | 1 | 115 | 0 | 3500 | 2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-4 2,0cv/1/132mm/3500rpm | 2,0 | 1 | 132 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-4 2,0cv/1/142mm/3500rpm | 2,0 | 1 | 142 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-2 2,0cv/1/150mm/3500rpm | 2,0 | 1 | 150 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-3 2,0cv/1/158mm/3500rpm | 2,0 | 1 | 158 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-3 2,0cv/1/164mm/3500rpm | 2,0 | 1 | 164 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-8 3,0cv/1/115mm/3500rpm | 3,0 | 1 | 115 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-8 3,0cv/1/118mm/3500rpm | 3,0 | 1 | 118 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-7 3,0cv/1/125mm/3500rpm | 3,0 | 1 | 125 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-5 3,0cv/1/130mm/3500rpm | 3,0 | 1 | 130 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 3,0cv/1/130mm/3500rpm | 3,0 | 1 | 130 | 0 | 3500 | 2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 3,0cv/1/135mm/3500rpm | 3,0 | 1 | 135 | 0 | 3500 | 2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-7 3,0cv/1/130mm/3500rpm | 3,0 | 1 | 130 | 0 | 3500 | 2 1/2" x 1 1/2" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-4 3,0cv/1/150mm/3500rpm | 3,0 | 1 | 150 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-2 3,0cv/1/160mm/3500rpm | 3,0 | 1 | 160 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-4 3,0cv/1/160mm/3500rpm | 3,0 | 1 | 160 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-2 3,0cv/1/164mm/3500rpm | 3,0 | 1 | 164 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-4 3,0cv/1/164mm/3500rpm | 3,0 | 1 | 164 | 0 | 3500 | 1 1/2" x 1" | 110/127/220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-8 4,0cv/1/127mm/3500rpm | 4,0 | 1 | 127 | 0 | 3500 | 2 1/2" x 1 1/2" | 220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-8 4,0cv/1/130mm/3500rpm | 4,0 | 1 | 130 | 0 | 3500 | 2 1/2" x 1 1/2" | 220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-5 4,0cv/1/145mm/3500rpm | 4,0 | 1 | 145 | 0 | 3500 | 1 1/2" x 1" | 220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-6 4,0cv/1/145mm/3500rpm | 4,0 | 1 | 145 | 0 | 3500 | 2" x 1 1/2" | 220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-2 4,0cv/1/164mm/3500rpm | 4,0 | 1 | 164 | 0 | 3500 | 1 1/2" x 1" | 220/254/440/508 | 220/380/440 | Onde Comprar |
|
|
CURVAS
|
FGN-2 0,50cv/1/110mm/2900rpm | 1/2 | 1 | 110 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-2 0,75cv/1/120mm/2900rpm | 3/4 | 1 | 120 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-2 1,0cv/1/140mm/2900rpm | 1,0 | 1 | 140 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-2 2,0cv/1/164mm/2900rpm | 2,0 | 1 | 164 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-2 3,0cv/1/164mm/2900rpm | 3,0 | 1 | 164 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-3 0,50cv/1/135mm/2900rpm | 1/2 | 1 | 135 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-3 0,75cv/1/140mm/2900rpm | 3/4 | 1 | 140 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-3 1,0cv/1/155mm/2900rpm | 1,0 | 1 | 155 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-3 1,5cv/1/164mm/2900rpm | 1,5 | 1 | 164 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-4 1,5cv/1/142mm/2900rpm | 1,5 | 1 | 142 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-4 2,0cv/1/160mm/2900rpm | 2,0 | 1 | 160 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
|
CURVAS
|
FGN-5 3,0cv/1/145mm/2900rpm | 3,0 | 1 | 145 | 0 | 2900 | 1 1/2" x 1" | 220 | 220/380 | Onde Comprar |
|
